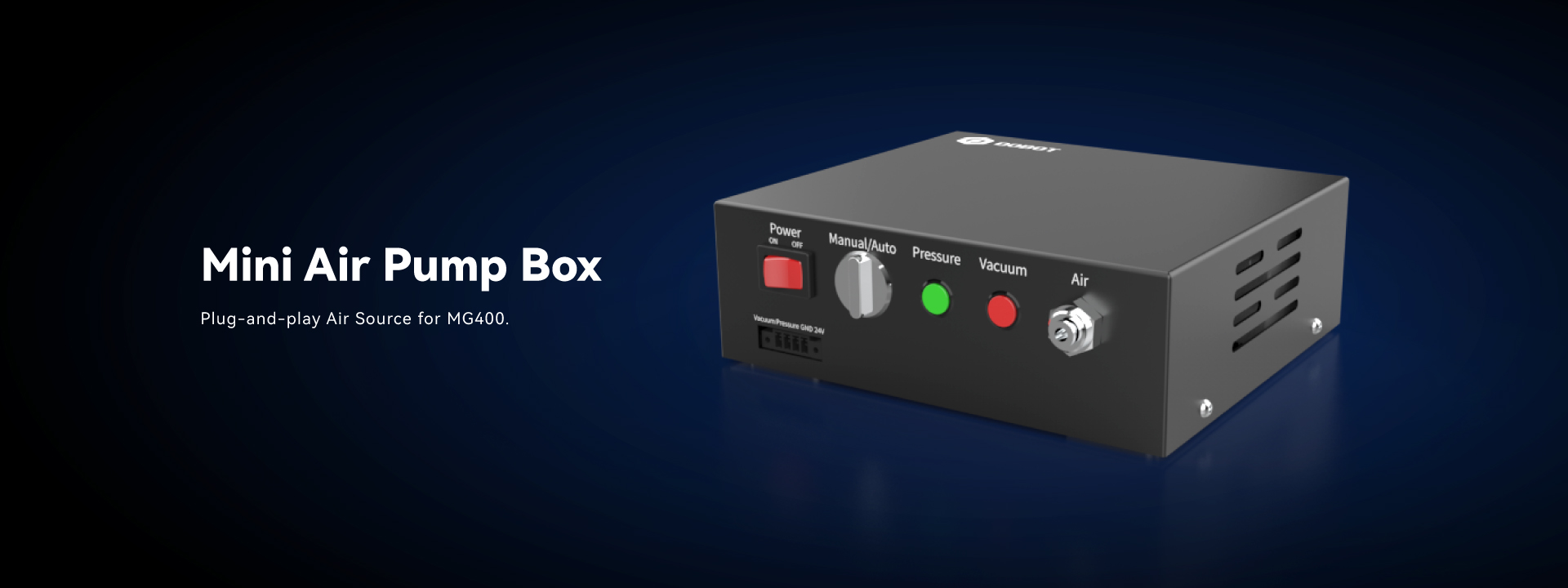

Mini Air Pump Box

Mini Air Pump Box

The DOBOT Mini Air Pump Box is a portable plug-and-play air source that allows flexible deployment anywhere.

Product Highlights

  • Plug & play: Eliminate the need for pneumatic circuit design and modification and create a movable unit workstation.
  • Easy to use: Supports two control modes - manual mode and I/O mode, making operation easy.
  • Cost-effectiveness: Saves costs and yields high returns.

Application

  • Use with other pneumatic tools to add pressure to grippers to complete tasks such as grabbing and transportation of objects.

Specifications

Mini Air Pump Box
Model Mini Air Pump Box
Range of Air Pressure -70 ~ 110 kPa
Control Method I/O
Diameter of Air Hose Connector Φ4 mm
Dimensions 163 mm × 143 mm × 53 mm
Weight 800 g
IP Rating IP20
Noise 65 dB
Rated Voltage 24V DC ±10%
Rated Current 0.8A
Max Current 1.2A

Join Ecosystem

Become a Dobot+ member to accelerate automation transformation in the world. Together we can maximize the impact of our products.

Become A Dobot
Distributor

Apply now

* The above data is the test results obtained by Dobot Laboratory under controlled experimental conditions, which may have slight differences from those in actual application scenarios.
