DOBOT CR5AS Series Robotic Arm | Obtains Innovative Pre-collision Sensing Technology

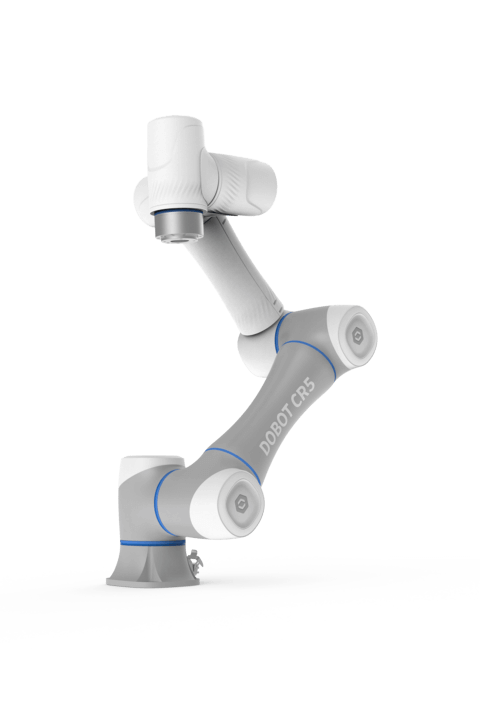

CR5AS Collaborative Robot

The CR5AS has a repeatability of ±0.02 mm and 5 levels of adjustable collision detection settings. The intelligent interaction panel offers quick access to drag-to-teach functionality. Equipped with SafeSkin for pre-collision detection, CR5AS allows for efficient human-machine collaboration.

Download product information

Please fill in the information below for further product information.

*I have read and agree to the <User Registration Agreement> and <Privacy Statement> of Dobot Robotics

SafeSkin
Innovative Pre-collision
Sensing Technology

Dobot’s exclusive technology for safer operations.

Learn more

Innovative Pre-collision Sensing Technology

Get in touch

Application Scenarios

Related Cases

Learn more

SafeSkin
Sense Type		Proximity and contact
Sensing Targets		Human bodies, metals, liquids, etc. (Less effective with non-conductive items)
Installation Location		J4, J5, J6 recommended
Effective Sense Range		5 ~ 15 cm (varies based on installation location)
Sensing Cycle Time		0.01 s
Emergency Stop Execution Time		0.1 s

Questions? We're here to help!

Our experts are ready to assist you in planning your path to automation success.
They can provide answers to all your Dobot-related queries, including:

√ Our Information on our product portfolio and pricing

√ Tailored solutions that suit your business needs

√ Distributor partnership policy and more…

Simply fill out the form at right or email us at sales@dobot-robots.com.

CR5AS
Weight		25 kg
Maximum Payload		5 kg
Working Radius		900 mm
Max Reach		1096 mm
Rated Voltage		48V DC
Maximum Linear Speed		2 m/s
Joint Ranges	J1	±360°
	J2	±360°
	J3	±160°
	J4	±360°
	J5	±360°
	J6	±360°
Maximum Speed of Joints	J1/J2/J3	180° /s
Maximum Speed of Joints	J4/J5/J6	223° /s
End-Effector I/O Interface	DI/DO/AI	2
End-Effector I/O Interface	AO	0
Communication Interface	Communication	RS485
Controller I/O	DI	16
	DO/DI	16
	AI/AO	2
	ABZ Incremental Encoder	1
Repeatability		±0.02 mm
Communication		TCP/IP, Modbus, Wi-Fi
IP Rating		IP54
Temperature		0° ～ 50° C
Power		150W
Materials		Aluminum alloy, ABS plastic

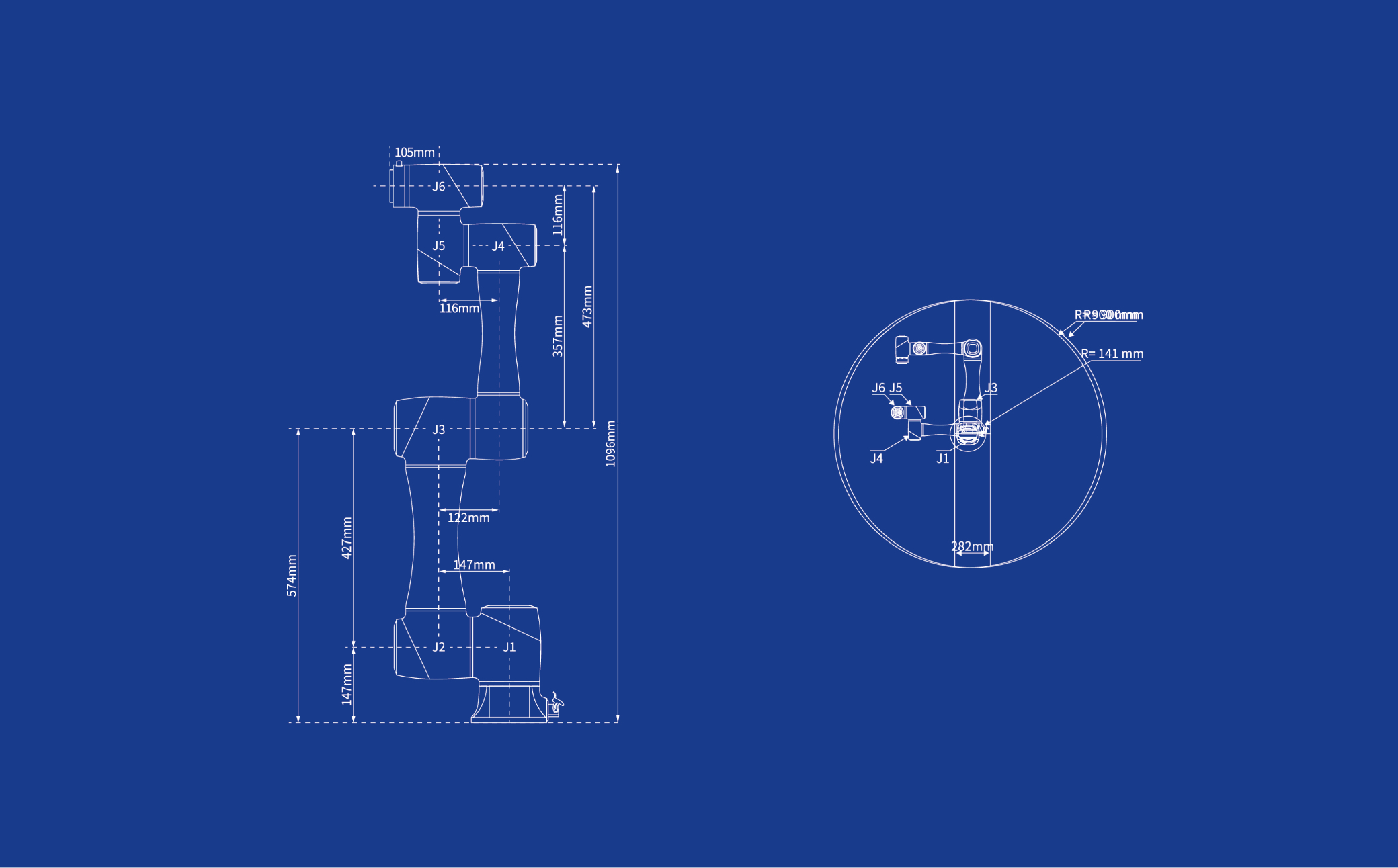

Working Range

Virtual Controller Application

We provide a free trial application for the robot cloud virtual controller. Fill in the following information and we will issue you a 12-hour license.

Contact Information

Application Product

Synchronize DataAfter the time expires, you will need to reapply. If you select "Synchronize Data", the previous data will be synchronized to the cloud virtual controller.

* I agree that Dobot processing my data in accordance with its privacy policy.

Dobot is committed to protecting and respecting your privacy. We prioritize the security of your information and employ industry-standard security measures to protect the user information you provide, preventing unauthorized access, disclosure, use, modification, damage, or loss of data.

Back To Home Page

CR5AS

CR5AS Collaborative Robot

CR3AS

CR10AS

SafeSkinInnovative Pre-collision Sensing Technology

Application Scenarios

Loading and Unloading

Assembly

Bin Picking

Gluing

Quality Inspection

Screwdriving

Transporting

Related Cases

Sanding and Polishing of Car Roof Surface with CR5 Cobot

Injection Molding Machine Auxiliary with CR5 Robot Arm

AGV Loading and Unloading of CNC Machines with CR Series Collaborative Robot

Questions? We're here to help!

CR5AS

Working Range

* The above data is the test results obtained by Dobot Laboratory under controlled experimental conditions, which may have slight differences from those in actual application scenarios.
