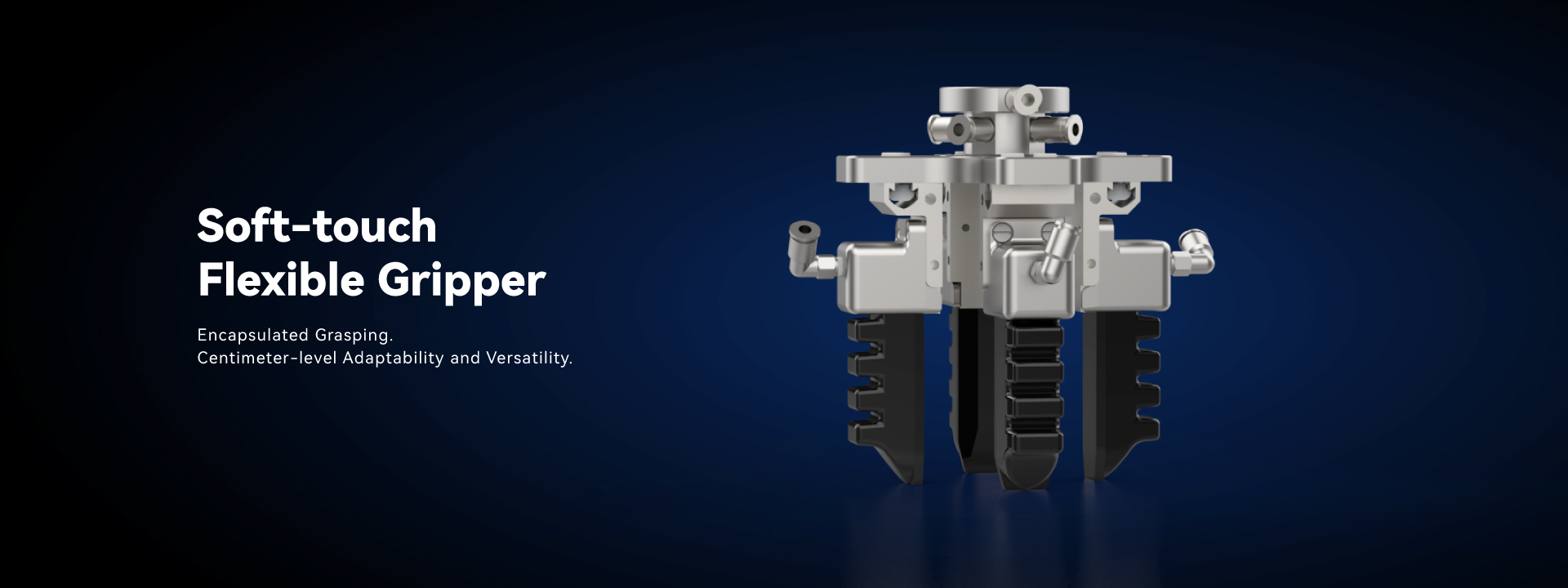

Soft-touch Flexible Gripper

Soft-touch Flexible Gripper

The soft-touch flexible gripper applies the principles of bionics to mimic the action of an octopus tentacle wrapping around the object being grabbed, enabling encapsulated grasping of objects. With centimeter-level adaptability and versatility, it can be used for objects of different sizes and shapes. It can to some extent solve the problem of large-scale automation production of irregular, fragile and vulnerable items.

Product Highlights

  • Plug and play: Multiple combinations of flexible grippers and suction cups can be flexibly used to respond to diverse production needs.
  • Flexible and adjustable: Equipped with a dedicated air source, it can be adjusted for positive and negative pressure, and can be used in multiple combinations such as two-finger, three-finger, and four-finger.
  • Strong expandability: Provides multiple types of suction cups to adapt to various irregularly-shaped parts.

Application

  • Suitable for packaging, sorting, and handling operations of fresh fruits and vegetables, food, catering, pharmaceuticals, and other industries, as well as handling and sorting of various small parts in the electronics industry.

Specifications

 Soft Beaks
  Soft Beak 1 Soft Beak 2 Soft Beak 3 Soft Beak 4
Model B-4B50 B-3B18 B-21606 B-20005
Max Working Frequency 300 times/min 300 times/min 300 times/min 300 times/min
Repeatability 0.05 mm 0.05 mm 0.05 mm 0.05 mm
Diameter of Metal Installation Tool G1/8 M5 11 mm 11 mm
Weight 80 g 12 g 9.8 g 10 g
Maximum Payload 60 g 15 g 50 g 30 g
Safe Working Pressure 100 kPa 100 kPa -100 to 80 kPa -100 to 80 kPa
Lifetime 1.5 million times 1.5 million times 500,000 to 1 million times 1 million times
Gripper
Model 2-finger / 3-finger / 4-finger
Diameter of Air Hose Connector 4 mm
Maximum Working Frequency 300 times/min
Repeatability 0.05 mm
Safe Working Pressure 120 kPa
Lifetime 3 million times
Active Driver
Voltage 24V DC
Outer Case Material Anodized aluminum alloy
Rated Power 18W
Noise <50 dB
Dimensions 158 mm × 120 mm × 75 mm
Output Pressure -85 to 100 kPa
Weight 1.05 kg
Safe Working Pressure 120 kPa
Lifetime 3 million times
IP Rating IP54
Lifetime 5000 hours
Positive Pressure Flow 4 L/min
Negative Pressure Flow 4 L/min
Control Method Manual button
 I/O control (digital signal)

Join Ecosystem

Become a Dobot+ member to accelerate automation transformation in the world. Together we can maximize the impact of our products.

Become A Dobot
Distributor

Apply now

* The above data is the test results obtained by Dobot Laboratory under controlled experimental conditions, which may have slight differences from those in actual application scenarios.
