Vision Kit

Vision Kit
Overview

Vision Kit

CR10S MG400

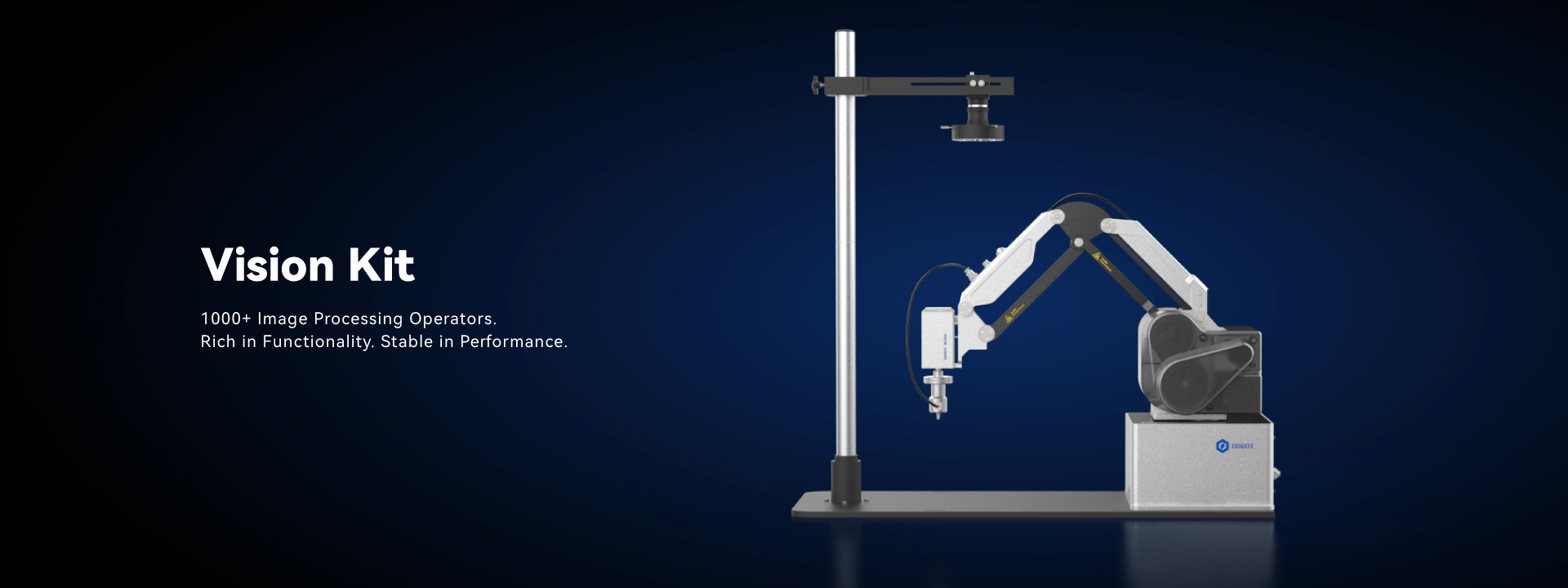

The Dobot Vision Kit provides a basic software and hardware platform compatible with the MG400, Magician, and M1 Pro. It has the advantages of rich functionality, stable performance, and easy operation, satisfying the visual application requirements for positioning, measurement, inspection, recognition, and other vision-related needs.

Product Highlights

  • Powerful scalability: The Vision Kit offers various types of SDK interfaces and modular development, which makes it highly scalable. It supports GigE Vision and USB 3 Vision protocols, allowing direct connections to various cameras from different brands.The MG400 Conveyor Belt Kit includes a linear module, a servo motor and a servo driver.
  • Rich visualization tools: The Vision Kit has more than 1000 image processing operators, high-performance algorithms, and a powerful visualization and analysis tool library. This enables users to quickly build machine vision application systems that meet different application needs.
  • Easy-to-use interface: The DobotVisionStudio supports graphical interaction, drag-and-drop operation, and visual development. The setup process is simple and flexible, and the backend and output interfaces can be easily customized.
  • Intuitive teaching demonstrations: the DobotVisionStudio provides rich teaching demonstrations, including color recognition, barcode recognition, character recognition, measurement, calibration, alignment, image processing, and more. These demonstrations help users understand the basic knowledge and operating principles of the Vision Kit in a clear and intuitive way.

Application

  • Suitable for various industries such as electronics, household appliances, and others, for applications such as positioning guidance, defect detection, measurement, recognition, and more .

Specifications

HD Color Industrial Camera
Model ID MV-CE050-30UC
Sensor Size 1/2.5" CMOS
Sensor Model AR0521
Effective Pixels 500 Megapixels
Pixel Size 2.2 um × 2.2 um
Frame Rate and Resolution 31@2592 × 1944
Signal Noise Ratio (SNR) >40 dB
Dynamic Range >60 dB
Shutter Type Rolling Shutter
Exposure Time

Bayer Mode: 16 μs to 1 s

Other Mode: 28 μs to 1 s
Exposure Control Auto/ Manual
Case Dimensions 29 mm × 29 mm × 30 mm
Port USB 3.0
Working Temperature 0 to 50° C
Camera Mount C-Mount
White Auxiliary Light
Model ID JHZM-A40-W
Emit Color White
Number of LED 48
Illuminance 40,000 lx
Brightness Continuously adjustable with a range of 0 to 100%, color temperature remains unchanged
Wavelength 455 to 457.5 nm
Output Voltage 12V
Output Power 3.5 to 5W
Working Distance 35 to 110 mm
Size

Inner Diameter: 40 mm

Outer Diameter: 70 mm
Height：25 mm
Outer Diameter of Lens Case Max φ39 mm
Weight 0.48 kg
Working Environment Temperature：0 to 40° C
Humidity：20% to 85% RH
Storage Environment Temperature：-20 to 40° C
Humidity：20% to 85% RH
12mm Fixed Focus Lens
Model No MVL-HF1228M-6MP
Lens Model 12 mm
Maximum Image Size 1/1.8" （φ9 mm）
Aperture Range F2.8 to F16
Control Mode Aperture Manual
Foc Manual
Field Angle D Field Angle 41.2°
H 34.4°
V 23.4°
Working Temperature -10 to 50° C
Optical Distortion -0.38%
Back Focal Length 17.526 mm
Shortest Photography Distance 0.06 m
Mount C-Mount
Filter M27 × 0.5
Size φ29 mm × 35.36 mm
