Conveyor Belt Kit
Overview Specs

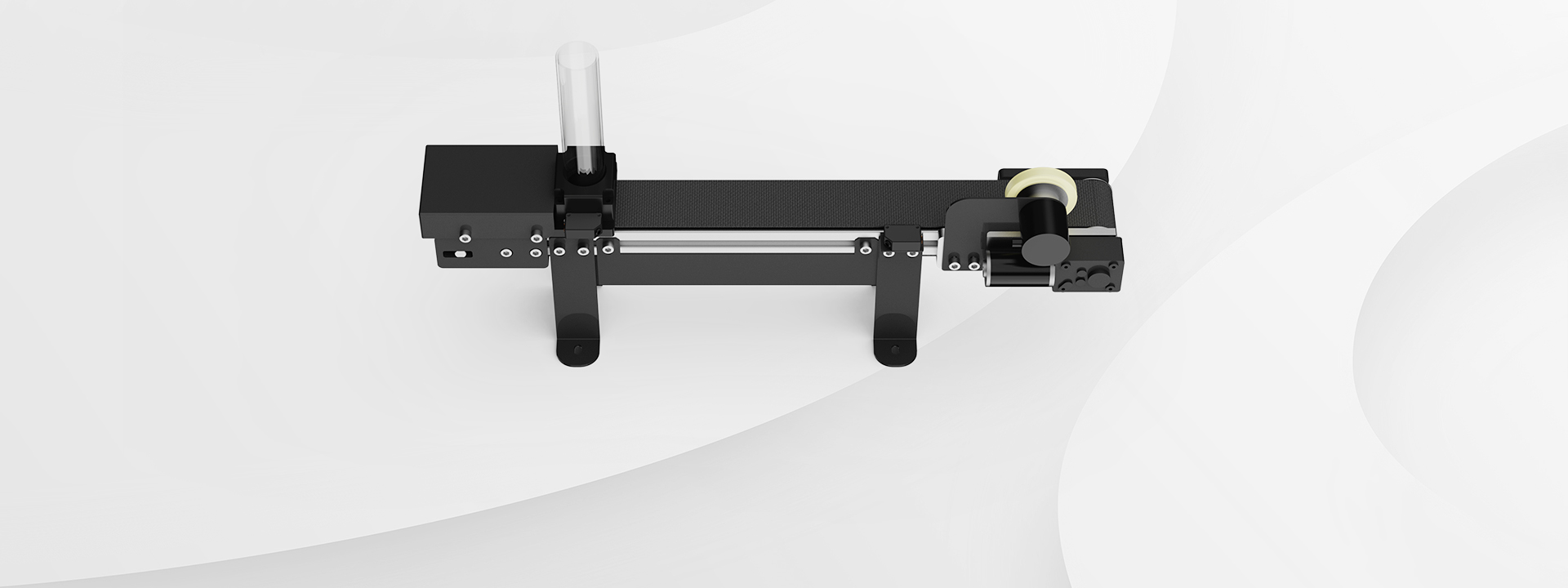

About the conveyor belt kit

The Conveyor Belt Kit is a highly integrated modular component developed by Dobot for practical training. It supports various features includingautomatic material feeding, transportation, inspection and more.
Its high compatibility allows combined usage with a number of robots including the DOBOT MG400, CR series and Magician E6. By combining the use with Collaborative Robot Universal Training Platform and other components, users can benefit from enhanced training results as automation scenes can be easily simulated.

Lightweight and Highly-integrated

Lightweight and Highly-integrated

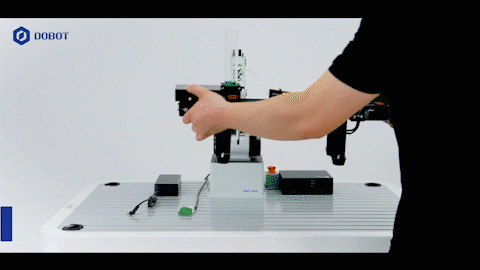

With a lightweight and highly-integrated design, it can be set up on tables, floors and training systems by just tightening screws for quick deployment.

Various Combinations for Better Simulations

Various Combinations for Better Simulations

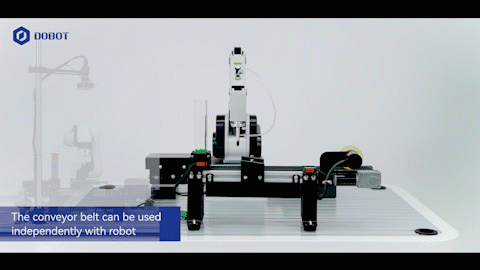

Works with the Collaborative Robot Universal Training Platform, CR series and Magician E6 and PLC modular components to simulate various scenarios, satisfying training needs.

Compact and Multifunctional

Compact and Multifunctional

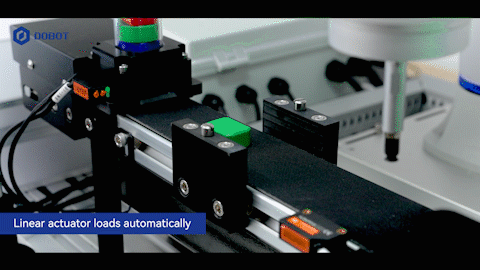

Supports various functions such as automatic material feeding, checks for item and conveyor belt travel distance with real-time feedback on the accurate item position on the conveyor belt. It can collaborate with robots for precise picking. It also has a wide range of ports to support plug-and-play for easy operation.

Get in touch

Questions? We're here to help!

Our experts are ready to assist you in planning your path to automation success.
They can provide answers to all your Dobot-related queries, including:
√ Our Information on our product portfolio and pricing
√ Tailored solutions that suit your business needs
√ Distributor partnership policy and more…
Simply fill out the form at right or email us at sales@dobot-robots.com.
Product Name Conveyor Belt Kit
Main Body Dimensions 583 ±8mm x 115mm x 180 ±5mm
Belt Dimensions 583 ±8mm x 55mm x 140 ±5mm
Power Input DC 24V
Current About 1A
Speed About 40mm/s
Automatic Loading Operates using linear actuator for 50 mm
Material Inspection Photoelectric sensor, inspection on the presence of material in 0 to 100 mm
Incremental Encoder Resolution 1000P/R
Output Signal ABZA/B/Z/ signal phasing
Diameter 40mm
Voltage DC 5V
Product certification CE, RoHS

* The above data is the test results obtained by Dobot Laboratory under controlled experimental conditions, which may have slight differences from those in actual application scenarios.
